Drillhole Details

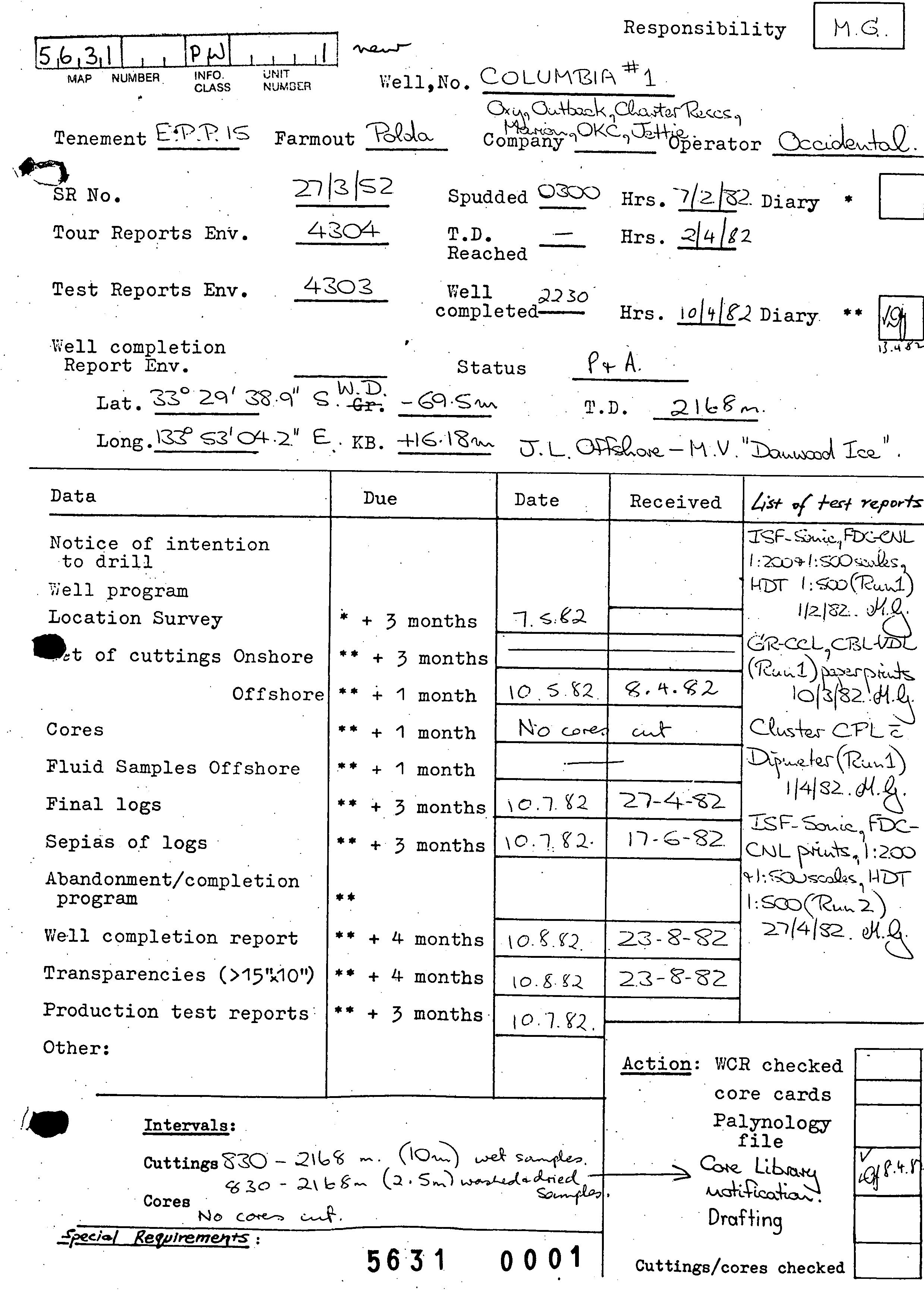

Details LocationStratigraphyLithologyPetrophysics Core Details Spectral Scanning Rock Samples Historical Documents References

Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

563100001

Max Drilled Depth (m)

2168.04

Max Drilled Date

10/04/1982

Cored Length

Tenement

EPP 15

Operator

Australian Occidental Pty Ltd.

Target

Oil

General Comments

EPP 15&0

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

GDA94 Transformed

MGA Easting

396513.08

MGA Northing

6293533.8

MGA Zone

Long Degrees

133

Long Minutes

Long Seconds

9.547

S Lat Degrees

S Lat Minutes

S Lat Seconds

33.756

Long Degrees Decimal

133.8859853

Lat Degrees Decimal

-33.49271

Horizontal Accuracy

Map 250K

SI5306 ELLISTON

Map 100K

5631 Unnamed offshore map 5631

Map 50K

SA Geodata - Database Reference

Site No

2520

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

270

No samples; Kelly bush 91m above sea floor

Strat Unit Name

no sample

Strat Unit Description

No sample: lost in drilling, cavity; sea if offshore.

GIS Code

------ns

270

706

J-o

SANDSTONE

SHALE

Sandstone, shale, siltstone, coal

Strat Unit Name

Polda Formation

Strat Unit Description

Sand, clayey, grey, brown and black; silt, carbonaceous, grey; clay; lignite; coal. Sandstone, conglomerate in outcrop.

GIS Code

J----o

706

771

CP-o

DIAMICTITE

Diamictite: boulder clay

Strat Unit Name

Coolardie Formation

Strat Unit Description

Glacial, glacially derived sediments, lithic fragments, with cobbles, pebbles, and sand fragments of igneous, metamorphic and sedimentary origin.

GIS Code

CP---o

771

1701

N-k

SILTSTONE

SANDSTONE

Siltstone, sandstone, claystone, limestone, dolomite

Strat Unit Name

Kilroo Formation

Strat Unit Description

Mixed clastics, evaporites, and volcanics.

GIS Code

N----k

1701

2168

? Ytb

SANDSTONE

SILTSTONE

Sandstone with minor red-brown siltstone

Strat Unit Name

Blue Range beds

Strat Unit Description

Sandstone, minor grit and pebble beds, white, massive to crossbedded, rare haematite veins.

GIS Code

Y--t-b

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
0.00	1.60	0.00	5.25	Core	Western Australia (Core stored WA Library)	N	Y	N	N
320.00	987.50	1049.87	3239.83	Cutting	Western Australia (Core stored WA Library)	N	Y	Y	Y
360.00	1030.00	1181.10	3379.27	Cutting	Western Australia (Core stored WA Library)	N	Y	Y	Y
987.50	1230.00	3239.83	4035.43	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1030.00	1230.00	3379.27	4035.43	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1045.00	1120.00	3428.48	3674.54	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1045.00	1205.00	3428.48	3953.41	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1045.00	1205.00	3428.48	3953.41	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1045.00	1230.00	3428.48	4035.43	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1047.50	1205.00	3436.68	3953.41	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1130.00	1590.00	3707.35	5216.54	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1205.00	1322.50	3953.41	4338.91	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1322.50	1815.00	4338.91	5954.72	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1590.00	2170.00	5216.54	7119.42	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N
1815.00	2167.50	5954.72	7111.22	Cutting	Western Australia (Core stored WA Library)	N	Y	N	N

Summary Mineral Plots

Shortwave Infrared

Thermal Infrared

Scanned Core Imagery

Sample Number	Depth From	Depth To	Sample Source	Collected By
7542	490	500	Drill cuttings	JONG, J.
7543	510	520	Drill cuttings	JONG, J.
7544	530	540	Drill cuttings	JONG, J.
7545	570	580	Drill cuttings	JONG, J.
7546	590	600	Drill cuttings	JONG, J.
7547	640	650	Drill cuttings	JONG, J.
79982
79983
79984
79985
79986
79987

Document	Document ID	Information Type	Document Details	Reports Database
Envelope	04737	Geochemistry Ref.	McClure, I. Columbia 1. Well completion report (interpretive version). South Australia. Department of Primary Industries and Resources. Open file Envelope 1982	SAMREF
Envelope	08496	Geochemistry Ref.	Watson, B.L.;Sears, H.W. Polda Basin source rock studies. Data. South Australia. Department of Primary Industries and Resources. Open file Envelope 1991	SAMREF
Envelope	04737	Geological Log Ref.	McClure, I. Columbia 1. Well completion report (interpretive version). South Australia. Department of Primary Industries and Resources. Open file Envelope 1982	SAMREF
Envelope	04737	Geophysical Log(s)	McClure, I. Columbia 1. Well completion report (interpretive version). South Australia. Department of Primary Industries and Resources. Open file Envelope 1982	SAMREF
Envelope	04737	Geotechnical Ref.	McClure, I. Columbia 1. Well completion report (interpretive version). South Australia. Department of Primary Industries and Resources. Open file Envelope 1982	SAMREF
Envelope	04737	Master Ref.	McClure, I. Columbia 1. Well completion report (interpretive version). South Australia. Department of Primary Industries and Resources. Open file Envelope 1982	SAMREF
