Drillhole Details

Details LocationStratigraphyLithologyPetrophysics Core Details Spectral Scanning Rock Samples Historical Documents References

Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

573100001

Max Drilled Depth (m)

893.67

Max Drilled Date

07/11/1975

Cored Length

Tenement

EPP 15

Operator

Outback Oil Co NL.

Target

Oil

General Comments

EPP 15&0

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

GDA94 Transformed

MGA Easting

425904.83

MGA Northing

6295495.8

MGA Zone

Long Degrees

134

Long Minutes

Long Seconds

9.041

S Lat Degrees

S Lat Minutes

S Lat Seconds

38.84

Long Degrees Decimal

134.2025114

Lat Degrees Decimal

-33.4774556

Horizontal Accuracy

Map 250K

SI5306 ELLISTON

Map 100K

5731 Radstock

Map 50K

SA Geodata - Database Reference

Site No

3200

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

272.8

No samples; Kelly bush 252' above sea floor

Strat Unit Name

no sample

Strat Unit Description

No sample: lost in drilling, cavity; sea if offshore.

GIS Code

------ns

272.8

308.76

SANDSTONE

LIMESTONE

Sandstone & micritic fossiliferous limestone

Strat Unit Name

Tertiary-Pleistocene rocks

Strat Unit Description

Undifferentiated Tertiary to Pleistocene rocks.

GIS Code

308.76

855.88

J-o

SANDSTONE

SILTSTONE

Sandstone, siltstone, shale, lignite

Strat Unit Name

Polda Formation

Strat Unit Description

Sand, clayey, grey, brown and black; silt, carbonaceous, grey; clay; lignite; coal. Sandstone, conglomerate in outcrop.

GIS Code

J----o

855.88

893.67

? CP-o

? DIAMICTITE

Probable diamictite; cuttings contained granite, syenite, basalt, siltstone & sandstone

Strat Unit Name

Coolardie Formation

Strat Unit Description

Glacial, glacially derived sediments, lithic fragments, with cobbles, pebbles, and sand fragments of igneous, metamorphic and sedimentary origin.

GIS Code

CP---o

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
284.99	853.44	935.01	2800.00	Cutting	Western Australia (Core stored WA Library)	N	Y	Y	N
285.00	893.60	935.04	2931.76	Cutting	Western Australia (Core stored WA Library)	N	Y	Y	N

Summary Mineral Plots

Shortwave Infrared

Thermal Infrared

Scanned Core Imagery

Sample Number	Depth From	Depth To	Sample Source	Collected By	Date Collected
8839	294.44		Sidewall core	PAL	11/04/1975
50721	294.44		Sidewall core	UNKNOWN	19/05/1982
8840	320.04		Sidewall core	UNKNOWN	11/04/1975
50722	320.04		Sidewall core	UNKNOWN	19/05/1982
50712	350.52	359.66	Drill cuttings	FLINT, R.B.	16/04/1987
8841	385.57		Sidewall core	UNKNOWN	11/04/1975
50723	385.57		Sidewall core	PAL	19/05/1982
50713	387.1	396.24	Drill cuttings	FLINT, R.B.	16/04/1987
8842	411.48		Sidewall core	UNKNOWN	11/04/1975
50724	411.48		Sidewall core	PAL	19/05/1982
50714	432.82	451.1	Drill cuttings	FLINT, R.B.	16/04/1987
50725	454.76		Sidewall core	PAL	20/05/1982
8843	454.76		Sidewall core	UNKNOWN	11/05/1975
8844	501.4		Sidewall core	UNKNOWN	11/05/1975
50726	501.4		Sidewall core	PAL	20/05/1982
50727	532.79		Sidewall core	PAL	20/05/1982
8845	532.79		Sidewall core	UNKNOWN	11/05/1975
8846	589.48		Sidewall core	UNKNOWN	11/05/1975
50730	589.48		Sidewall core	PAL	18/05/1982
8847	638.25		Sidewall core	UNKNOWN	11/06/1975
60305	638.25		Sidewall core	PAL	18/05/1982
8848	690.07		Sidewall core	UNKNOWN	11/06/1975
50731	690.07		Sidewall core	UNKNOWN	18/05/1982
8849	707.75		Sidewall core	UNKNOWN	11/06/1975
50729	707.75		Sidewall core	PAL	20/05/1982
50715	725.42	752.86	Drill cuttings	FLINT, R.B.	16/04/1987
8850	741.27		Sidewall core	UNKNOWN	11/06/1975
50732	741.27		Sidewall core	PAL	6/07/1982
8851	758.04		Sidewall core	UNKNOWN	11/10/1975
50733	758.04		Sidewall core	PAL	6/07/1982
50734	764.44		Sidewall core	PAL	6/07/1982
8852	764.44		Sidewall core	UNKNOWN	11/10/1975
60306	775.41		Sidewall core	PAL	6/07/1982
8853	775.41		Sidewall core	UNKNOWN	11/10/1975
8854	799.8		Sidewall core	UNKNOWN	11/10/1975
50728	799.8		Sidewall core	PAL	18/05/1982
8855	807.72		Sidewall core	UNKNOWN	10/11/1975
50735	807.72		Sidewall core	UNKNOWN	3/08/1982
50736	826.01		Sidewall core	PAL	3/08/1982
8856	826.01		Sidewall core	UNKNOWN	10/11/1975
8857	844.3		Sidewall core	UNKNOWN	10/11/1975
50737	844.3		Sidewall core	PAL	3/08/1982
8858	871.73		Sidewall core	UNKNOWN	10/10/1975
60307	871.73		Sidewall core	PAL	3/08/1982

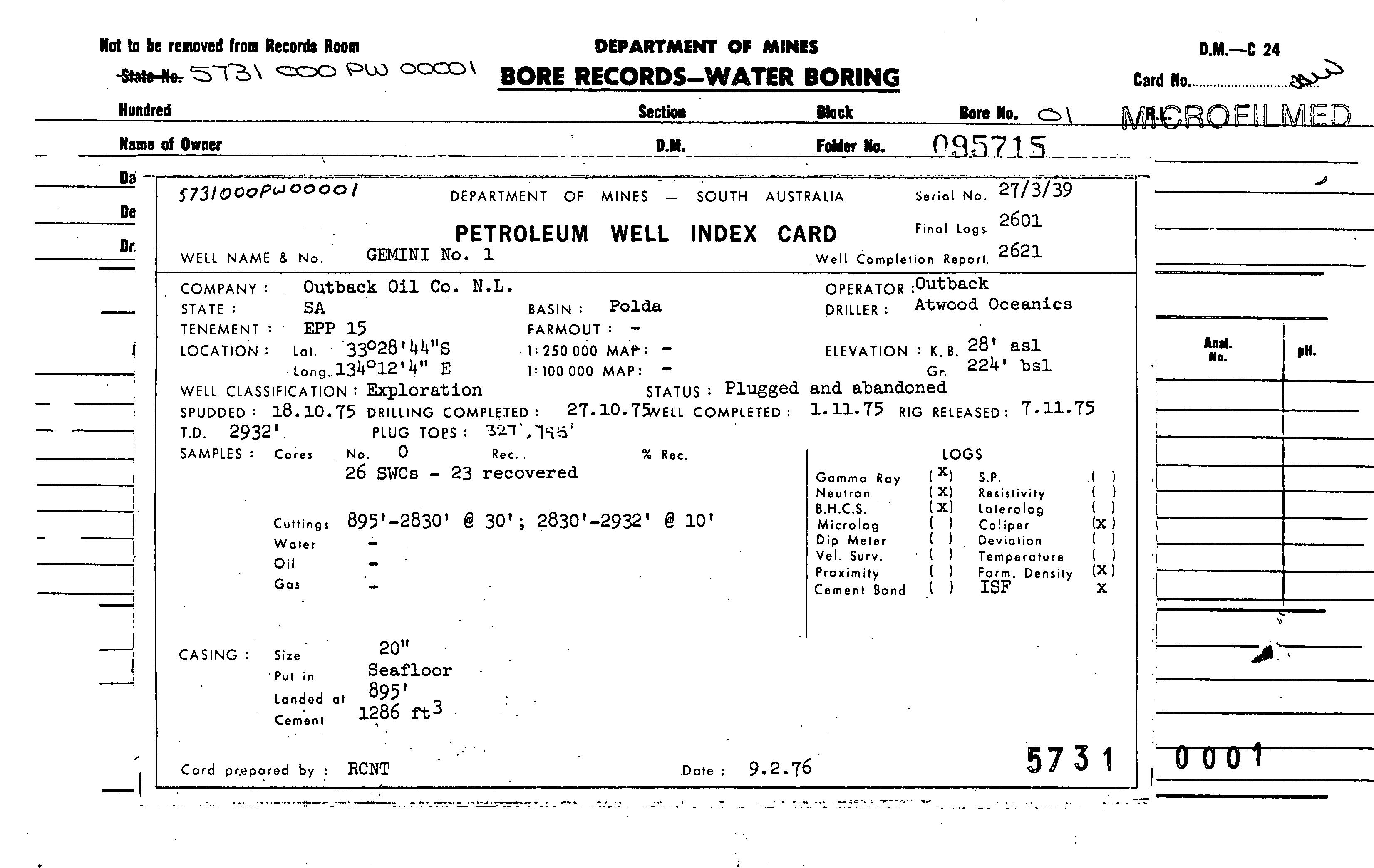

Document	Document ID	Information Type	Document Details	Reports Database
Envelope	02621	Geochronology Ref.	Carter, B.R.;Scott, A.F. Gemini 1. Well completion report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1975	SAMREF
Envelope	03419	Geochronology Ref.	Hern, J.L.;Baker, D.R. EPP 15 exploration progress reports for the period May 1978 to February 1979. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Envelope	02621	Geological Log Ref.	Carter, B.R.;Scott, A.F. Gemini 1. Well completion report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1975	SAMREF
Envelope	02621	Geophysical Log(s)	Carter, B.R.;Scott, A.F. Gemini 1. Well completion report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1975	SAMREF
Envelope	02621	Master Ref.	Carter, B.R.;Scott, A.F. Gemini 1. Well completion report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1975	SAMREF
Envelope	02621	Palaeontology Ref.	Carter, B.R.;Scott, A.F. Gemini 1. Well completion report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1975	SAMREF
Envelope	03638	Palaeontology Ref.	Hern, J.L.;Smith, E.E. Polda Basin area, offshore SA. Seismic reprocessing and geophysical interpretation final report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1983	SAMREF
Envelope	02621	Petrology Ref.	Carter, B.R.;Scott, A.F. Gemini 1. Well completion report. South Australia. Department of Primary Industries and Resources. Open file Envelope 1975	SAMREF
Envelope	03274	Petrology Ref.
Envelope	03419	Petrology Ref.	Hern, J.L.;Baker, D.R. EPP 15 exploration progress reports for the period May 1978 to February 1979. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
