Representative Drillhole From a Larger Program

Drillhole Program Comments

Map / Unit Number

593600118

Max Drilled Depth (m)

200

Max Drilled Date

10/11/1979

Cored Length

Tenement

EL 458

Operator

Carpentaria Exploration Co Pty Ltd.

Target

Uranium

General Comments

ALSO PETROLOGY GS4179/80;RELOGGED W.M.C. JAN 1986Sample method = Mud/Cuttings.Detailed Geol. Log

Dip

-90

Azimuth

Class

Mineral Water Well Petroleum Engineering Stratigraphy

Datum

GDA2020

Coordinate Source

MGA Easting

536717.56

MGA Northing

6608898.21

MGA Zone

Long Degrees

135

Long Minutes

Long Seconds

59.62

S Lat Degrees

S Lat Minutes

S Lat Seconds

7.309

Long Degrees Decimal

135.3832279

Lat Degrees Decimal

-30.6520303

Horizontal Accuracy

Map 250K

SH5311 KINGOONYA

Map 100K

5936 Kingoonya

Map 50K

SA Geodata - Database Reference

Site No

8151

Metres From

Metres To

Map Symbol

Major Lithology

Minor Lithology

Description

SAND

CLAY (UNDIFF. ORIGIN)

CLAYEY SAND,CALCRETE

Strat Unit Name

Quaternary rocks

Strat Unit Description

Undifferentiated Quaternary rocks.

GIS Code

Tep2

CLAY (UNDIFF. ORIGIN)

SILT

SILTY CLAY

Strat Unit Name

Eocene-Pliocene unit 2

Strat Unit Description

Eocene sandy clay, sand, gypsiferous/carbonaceous clay, sand. Based on Te-p on KINGOONYA; probably includes Pidinga and Garford Fmns.

GIS Code

ep------02

JK-a

SAND

SILT

SAND,SILT,CLAY

Strat Unit Name

Algebuckina Sandstone

Strat Unit Description

Sandstone, fine to coarse-grained, with granule and pebble layers, and shale intraclasts. Cross-bedded.

GIS Code

JK---a

112

Y-b

SILTSTONE

SANDSTONE

SILTSTONE,V.F.G.SANDSTONE

Strat Unit Name

Labyrinth Formation

Strat Unit Description

Chert, pink, white, dark grey, stromatolitic; sandstone, red to purple, medium-grained to conglomeratic, foliated; sandstone, chloritc or sericitic; rhyolite. U-Pb age 1722-1715 Ma.

GIS Code

Y----b

112

124

Mtalk

BASALT

Strat Unit Name

Konkaby Basalt

Strat Unit Description

Andesite-basalt; dacite, vesicular, agglomeratic, tuffaceous.

GIS Code

M-talk

124

138

Mtale

RHYOLITE

Strat Unit Name

Ealbara Rhyolite

Strat Unit Description

Rhyolite, flow banded; rhyodacite. ignimbritic; tuff.

GIS Code

M-tale

138

200

Y-b

SANDSTONE

SILTSTONE

V.F.G.LITHIC SANDSTONE,SILTSTONE

Strat Unit Name

Labyrinth Formation

Strat Unit Description

Chert, pink, white, dark grey, stromatolitic; sandstone, red to purple, medium-grained to conglomeratic, foliated; sandstone, chloritc or sericitic; rhyolite. U-Pb age 1722-1715 Ma.

GIS Code

Y----b

Sample Allowed Hazard

Metres From	Metres To	Feet From	Feet To	Core Group	Library Location	Culled	Core Previously Inspected	Sample Record	Sample Returned to Library
0.00	200.00	0.00	656.17	Cutting	Tonsley	N	Y	Y	N

Summary Mineral Plots

Shortwave Infrared

Thermal Infrared

Scanned Core Imagery

Sample Number	Depth From	Depth To	Sample Source	Collected By	Date Collected
485792	28	30	Drill cuttings	BROADBRIDGE, L.M.
485793	34	36	Drill cuttings	BROADBRIDGE, L.M.
62262	76	78	Drill cuttings	CARPENTARIA EXPLORATION CO PTY L
12156	86	88		CROOKS, A.F.	10/03/1980
12157	104	106		CROOKS, A.F.	10/03/1980
12158	112	116		CROOKS, A.F.	10/03/1980
62261	122	124	Drill cuttings	CARPENTARIA EXPLORATION CO PTY L
3937258	132	136	Drill cuttings	EXTERNAL - REFER CORE INSPECTION	15/12/2021
12159	134	136		CROOKS, A.F.	10/03/1980
12160	164	166		CROOKS, A.F.	10/03/1980
62260	198	200	Drill cuttings	CARPENTARIA EXPLORATION CO PTY L

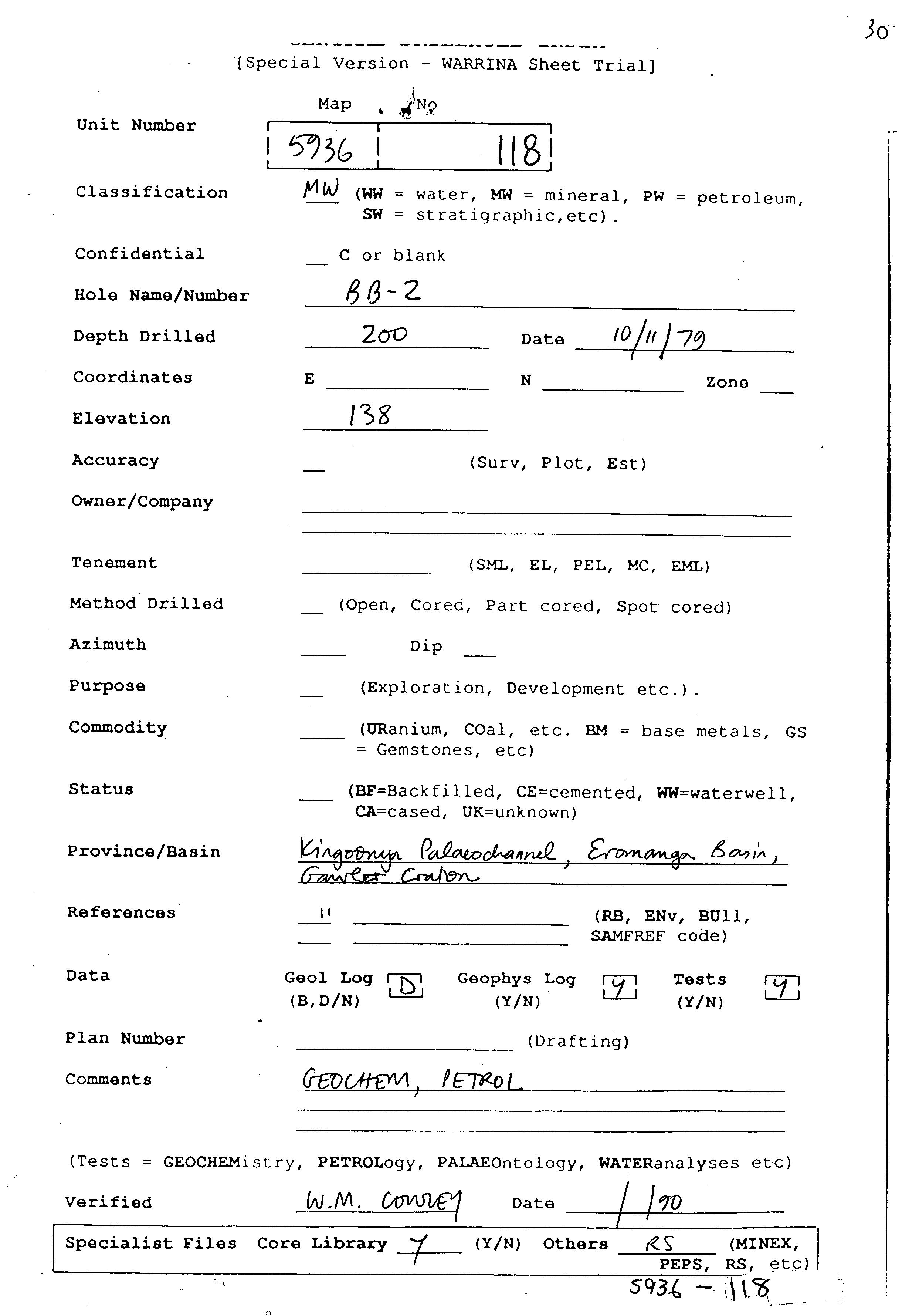

Document	Document ID	Information Type	Document Details	Reports Database
Envelope	03509	Geochemistry Ref.	Darlington, R.E. Progress reports. EL 458 Bon Bon, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Envelope	03509	Geological Log Ref.	Darlington, R.E. Progress reports. EL 458 Bon Bon, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Envelope	03509	Geophysical Log(s)	Darlington, R.E. Progress reports. EL 458 Bon Bon, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Envelope	03509	Master Ref.	Darlington, R.E. Progress reports. EL 458 Bon Bon, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Envelope	03509	Petrology Ref.	Darlington, R.E. Progress reports. EL 458 Bon Bon, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
Envelope	03509	Hydrogeology Ref.	Darlington, R.E. Progress reports. EL 458 Bon Bon, SA. South Australia. Department of Primary Industries and Resources. Open file Envelope 1979	SAMREF
