SA Geodata Database - Field Observations
Site Number: 2011915 Field ID: MW-RP00208 Observer: WERNER, M. Observation Date: 11/09/2015 Horizontal Accuracy: 10m
Site Details
MGA Easting
736319.9
MGA Northing
6404988.27
MGA Zone
53
Long Degrees Decimal
137.5144135
Lat Degrees Decimal
32.4672344
Elevation
111m
Datum
GDA2020
Coordinate Source
GPS Standalone Navigational
Map 250K
SI5304 PORT AUGUSTA
Map100K
6433 Augusta
Map50K
3
Lithology and Structure
Lithology
SHALE
Modifier
laminated, white, kaolinite, highly weathered
Map Symbol
Nhwstt
GIS Code
N-hwstt
Strat Unit Name
Tregolana Shale Member
Obs Date
11/09/2015
Comments

Structure Type
Originally horizontal sedimentary bedding
Azimuth (True)
343 ± 2
Inclination
25 ± 2
Younging
Chronological Structure Generation to which the Structure Belongs
Local
Regional
Orogeny Name
Structure Type
Originally horizontal sedimentary bedding
Azimuth (True)
318 ± 2
Inclination
35 ± 2
Younging
Chronological Structure Generation to which the Structure Belongs
Local
Regional
Orogeny Name
Lithology
SANDSTONE
Modifier
medium-grained, well sorted, light greenish grey, silicified, highly weathered
Map Symbol
GIS Code
Strat Unit Name
Obs Date
11/09/2015
Comments
Tertiary?

Lithology
SILCRETE
Modifier
in-situ, nodular, protolith-sandstone
Map Symbol
T\si
GIS Code
ap----si
Strat Unit Name
Tertiary silcrete
Obs Date
11/09/2015
Comments

Field Notes
Obs Date
11/09/2015
Notes
Breakaway with outcrops of Tregolana shales/sandstones, highly weathered, kaolinised. Overlain by 1.5-2 m of greenish-grey, medium-grained, well-sorted sandstone (Tertiary?) which is mainly structureless but at one spot with faint lamination. Grades upwards into silcretised sandstone or silcrete with laminar and nodular pedogenetic textures. Here angular unconformity between Neoproterozoic sediments and Tertiary(?) sandstone/silcrete due to flexure/monoclinal structure in shales. Dip on flexure 335/25 & 310/35. P: 6568-79.
Samples collected at this site
Site Images

Field Observation Site Image
Field Observation Site Image
Image Number
121994
Site Number
2011915
Date
25/09/2015
Photographer
Werner, M.
Title

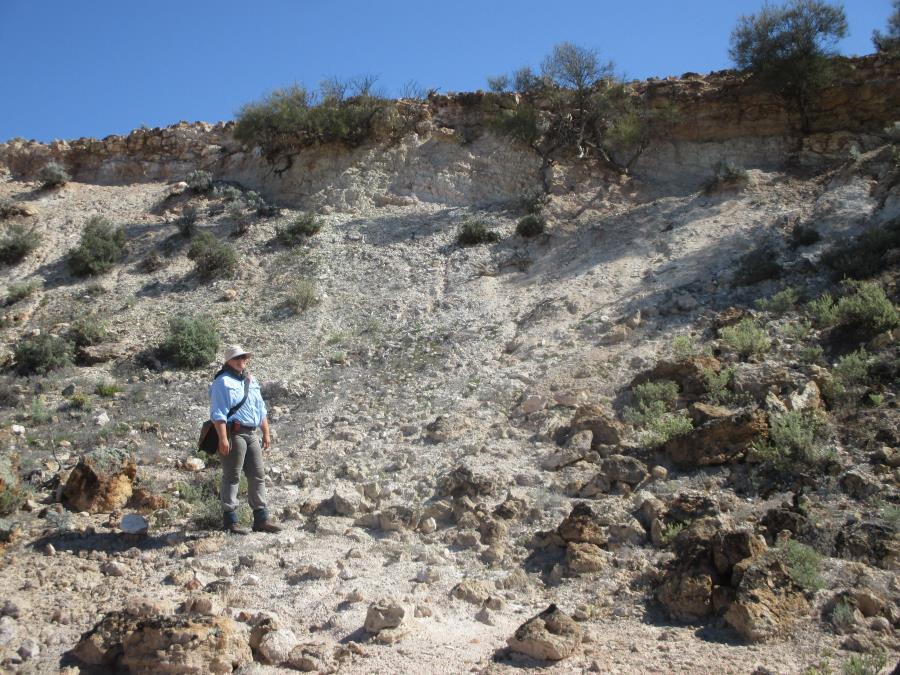

Breakaway with silcrete/sst over Tregolana shale
Comments
