Sample:

2079358

Depth From:

Depth To:

Details Location Geochemistry Biostratigraphy Petrology Geochronology References

Sample Source

Rock outcrop / float

Drillhole Name

Drillhole Number

Collected By

WERNER, M.

Collector's Number

Collected Date

10/09/2015

Tenement

Comments

Geochronology sample for Sugarloaf Dam Sandstone

Rock Group

SEDIMENT SILICICLASTIC ARENITE

Lithology

SANDSTONE

Lithology Modifier

medium-grained, well sorted, Kaolinite, bioturbation, white, silicified

Map Symbol

T-s

GIS Code

ap---s

Strat Unit Name

Sugarloaf Dam Sandstone

Strat Modifier

Strat Description

Sandstone, well sorted, medium-grained, kaolinitic, with rhizomorphs, variably silicified.

Geological Province

UNNAMED INTERMONTANE BASIN

Datum

GDA2020

Coordinate Source

GPS Standalone Navigational

MGA Easting

734334.23

MGA Northing

6412125.6

MGA Zone

Long Degrees

137

Long Minutes

Long Seconds

29.517

S Lat Degrees

S Lat Minutes

S Lat Seconds

11.982

Long Degrees Decimal

137.4915326

Lat Degrees Decimal

-32.4033284

Horizontal Accuracy

Map 250K

PORT AUGUSTA

Map 100K

Cariewerloo

Map 50K

SA Geodata - Database Reference

Site No

2011898

Analysis Type

Analysis Number

Analyst

Analysis Date

Preservation

Yield

Barren

Slide in Storage

Analysis Comments

Bio.Youngest.Age

Bio.Oldest

Paleo Environment

Paleo Vegetation

Min Biostrat Zone 1

Max Biostrat Zone 2

Result	Result Type	Result Comments

Analysis Number

1690940

Petrology Number

Historical Petrology Number

Analyst

Petrology Analysis Date

Thin Section in Storage

Petrology Specimen Type

Lithology

Summary Decription

Detailed Decription

Mineral Abundances by Volume

Abundant > 70%

Major 30-70%

Minor 5-29%

Trace 1-4%

Rare <1%

Unknown abundance

Rock Sample Images

Rock Sample Image

Image Number

124735

Sample Number

2079358

Date

Photographer

Werner, M.

Title

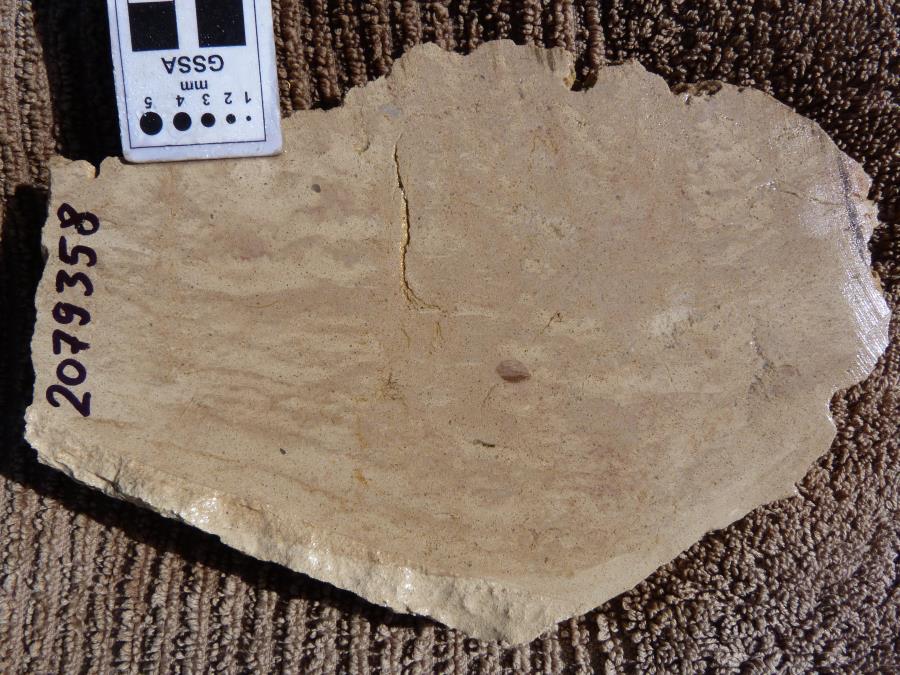

Silicified kaolinitic Sugarloaf Dam Sandstone

Comments
